Belden 5306FE 008100 8 Conductor 18 AWG Shielded Cable 100 feet

Description

Product Overview

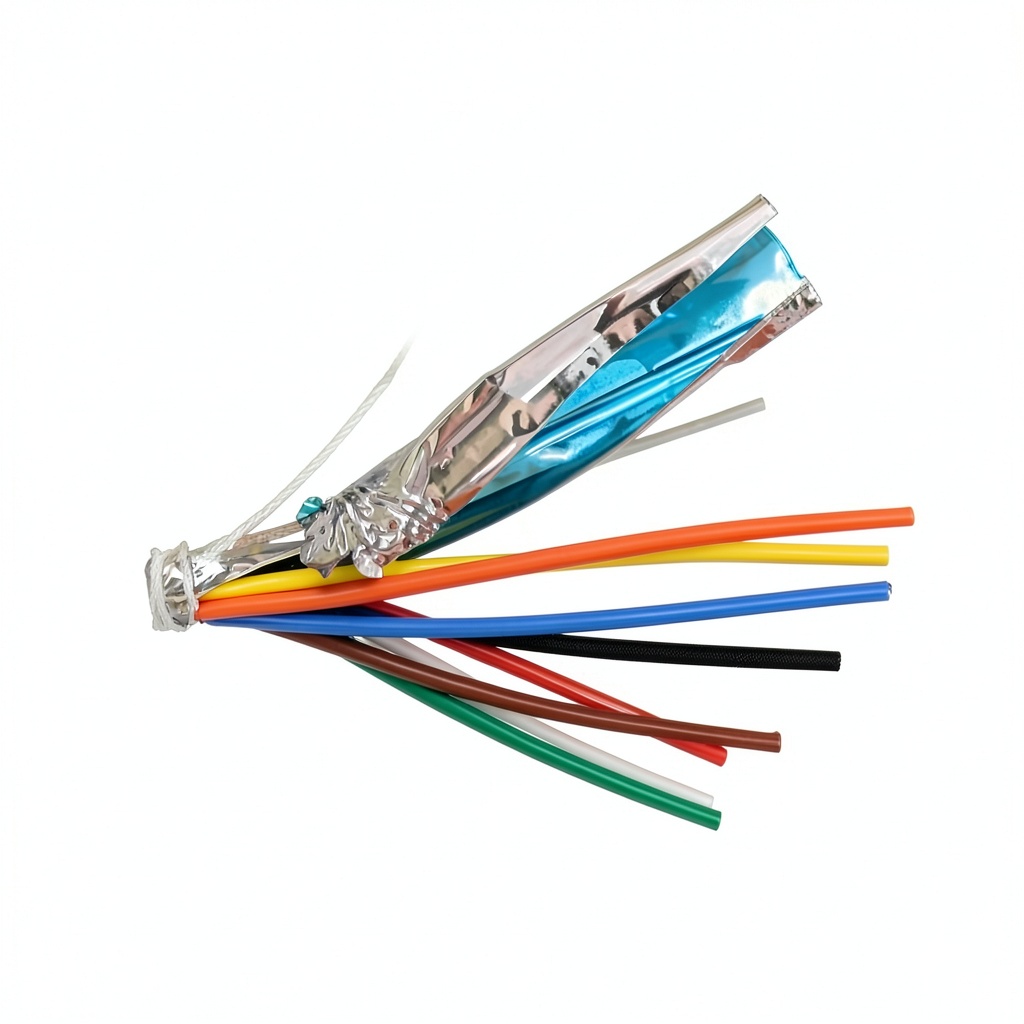

The Belden 5306FE 8‑conductor 18 AWG shielded cable is engineered for demanding industrial environments where signal integrity and durability are paramount. Constructed with a high‑quality PVC jacket, the cable resists abrasion, oil, chemicals, and a wide temperature range, making it suitable for harsh factory floors, outdoor installations, and heavy‑duty machinery. Each of the eight conductors is individually insulated and collectively wrapped in a foil shield that minimizes electromagnetic interference (EMI), ensuring clean data and power transmission. With a total length of 100 feet, the cable provides ample reach for complex wiring layouts while maintaining flexibility for easy routing around tight spaces. The 18 AWG gauge balances current‑carrying capacity with low voltage drop, supporting a variety of applications from control circuits to sensor networks. Certified to meet UL standards, this cable offers peace of mind for engineers and technicians who require reliable, long‑lasting performance.

Usage

Designed for versatility, the Belden 5306FE cable excels in a range of industrial scenarios. In control panels, the eight conductors can be used to separate power, ground, and signal lines, reducing cross‑talk and simplifying troubleshooting. Automation equipment such as programmable logic controllers (PLCs), variable frequency drives (VFDs), and robotic arms benefit from the cable’s shielded design, which protects sensitive communication lines from surrounding electromagnetic fields. The flexible PVC jacket allows installers to bend the cable around conduit bends, cable trays, and equipment housings without compromising the integrity of the shielding. Additionally, the cable is well‑suited for sensor wiring in process control, where accurate signal transmission is critical for maintaining product quality and safety. Its durability also makes it a reliable choice for outdoor applications, including motor control centers and agricultural machinery, where exposure to moisture and temperature fluctuations is common.

Why Choose Us

Choosing the Belden 5306FE cable means selecting a product backed by over 80 years of industry expertise. Belden’s rigorous manufacturing processes ensure consistent conductor resistance, uniform shielding coverage, and precise dimensional tolerances, which translate into predictable performance on every installation. The cable’s PVC‑jacketed construction not only meets but exceeds typical industrial specifications for flame retardancy and chemical resistance, reducing the need for additional protective sleeves. Our commitment to quality is reinforced by comprehensive testing, including tensile strength, bend radius, and EMI attenuation, guaranteeing that the cable will perform reliably under the most demanding conditions. Furthermore, Belden provides responsive technical support and detailed documentation, helping engineers quickly resolve any integration questions. With a proven track record in critical infrastructure projects worldwide, Belden delivers confidence that your wiring will remain functional and safe throughout the product’s lifecycle.

Key Features

• Eight 18 AWG conductors with individual insulation provide clear separation for power and signal lines, simplifying system design and troubleshooting.
• Foil shield encircles all conductors, delivering superior EMI protection that maintains signal fidelity in electrically noisy environments.
• Durable PVC jacket resists abrasion, oil, chemicals, and temperature extremes, extending service life and reducing maintenance costs.
• 100‑foot length offers flexibility for large installations while maintaining manageable handling and storage characteristics.
• Backed by Belden’s technical support and warranty, ensuring reliable performance and assistance throughout the product’s lifespan.

FAQ

What temperature range can the Belden 5306FE cable operate in?

The cable is rated for continuous operation from -20 °C to +80 °C (-4 °F to 176 °F). This range covers most indoor industrial environments and many outdoor applications, providing reliable performance even when exposed to temperature fluctuations typical of manufacturing facilities.

Is the cable suitable for outdoor use?

Yes. The PVC jacket offers resistance to moisture, UV exposure, and a variety of chemicals commonly encountered outdoors. When installed in outdoor conduit or protective raceways, the cable maintains its shielding effectiveness and mechanical integrity, making it a solid choice for outdoor motor control centers, agricultural equipment, and remote sensor networks.

Can this cable be used for data communication as well as power?

Absolutely. The 18 AWG conductors are capable of handling low‑voltage power distribution while the shielded design supports data signals such as RS‑485, Ethernet, and sensor outputs. The EMI protection helps prevent data corruption, allowing the same cable to serve dual purposes in compact installations.

What certifications does the Belden 5306FE cable have?

The cable meets UL 758 standards for multiconductor cables, ensuring compliance with fire safety and performance requirements. It also conforms to industry‑specific standards for industrial control wiring, providing assurance that it will pass regulatory inspections and meet project specifications.

How does Belden support customers after purchase?

Belden offers comprehensive technical support, including wiring diagrams, installation guides, and direct access to engineering experts. In addition, the product is covered by a limited warranty that addresses material and workmanship defects, giving customers confidence in long‑term reliability and service continuity.
