Cognex in-Sight 7000/9000 24V IO Cable M12 A‑Coded 12‑Pin Lead 1m

Description

Product Overview

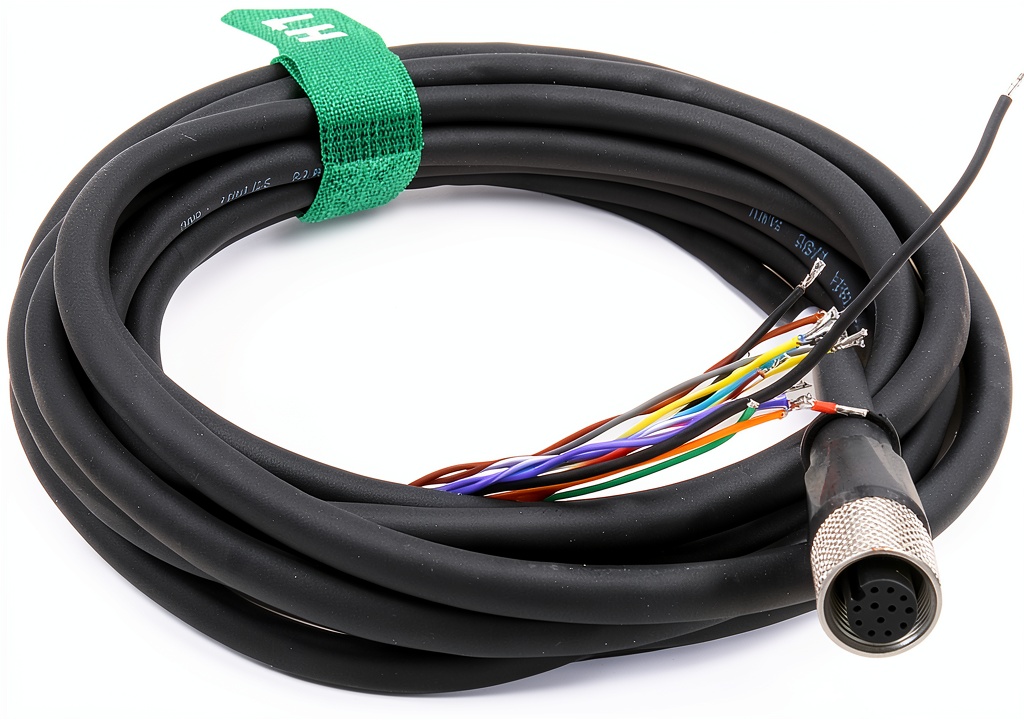

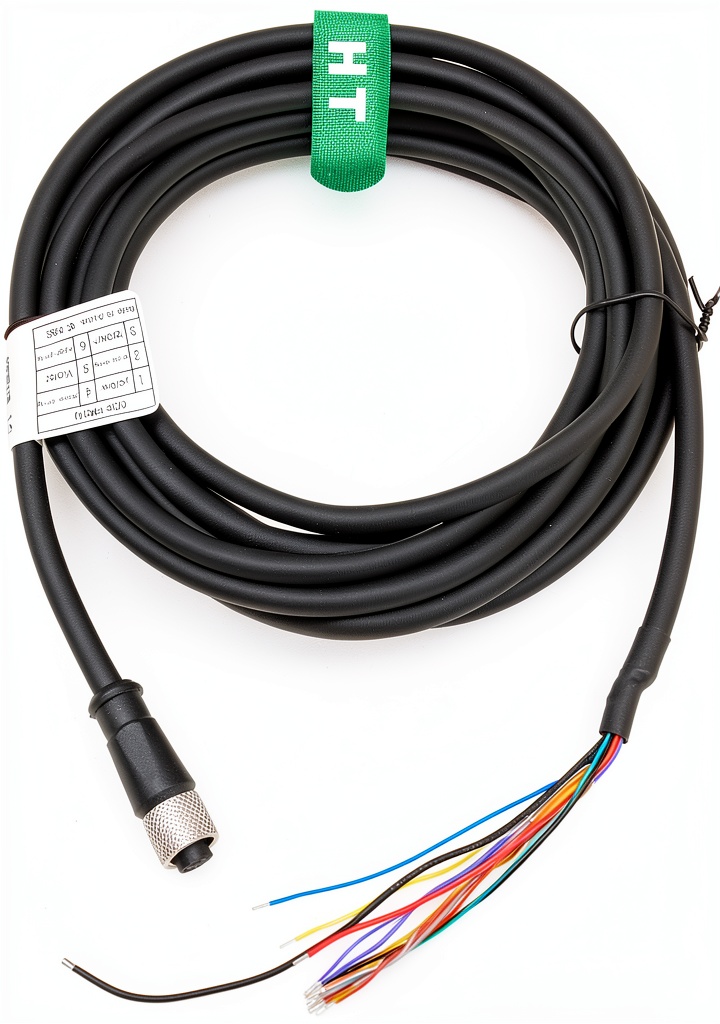

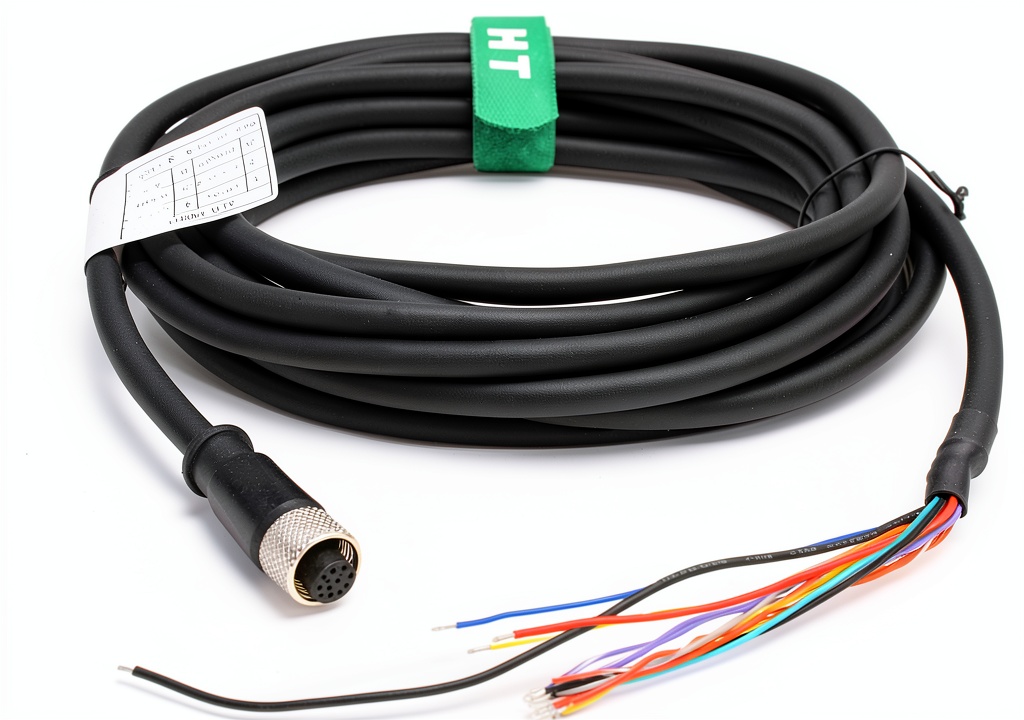

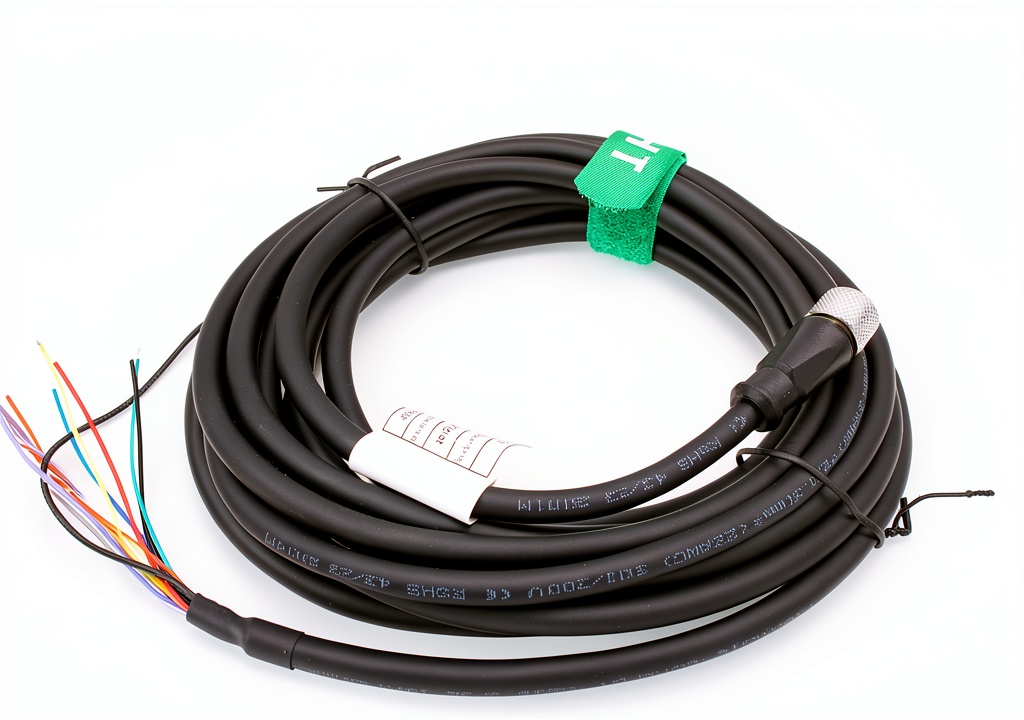

The Cognex in‑Sight 24V Power IO Cable is engineered to meet the demanding requirements of modern machine vision applications. Featuring a high‑quality M12 A‑coded 12‑pin female connector on one end and a 1 m bare wire flying lead on the other, this cable offers a secure, low‑resistance path for both power and data signals. The cable construction utilizes 23 AWG stranded copper conductors surrounded by a braided shield, delivering excellent flexibility while maintaining superior electromagnetic compatibility (EMC) performance. Gold‑plated contacts and a nickel‑plated brass shell provide corrosion resistance and long‑term reliability, even in harsh industrial environments where oil, chemicals, and temperature fluctuations are common. The cable complies with industry standards for flame resistance and oil resistance, ensuring safety and durability throughout its service life.

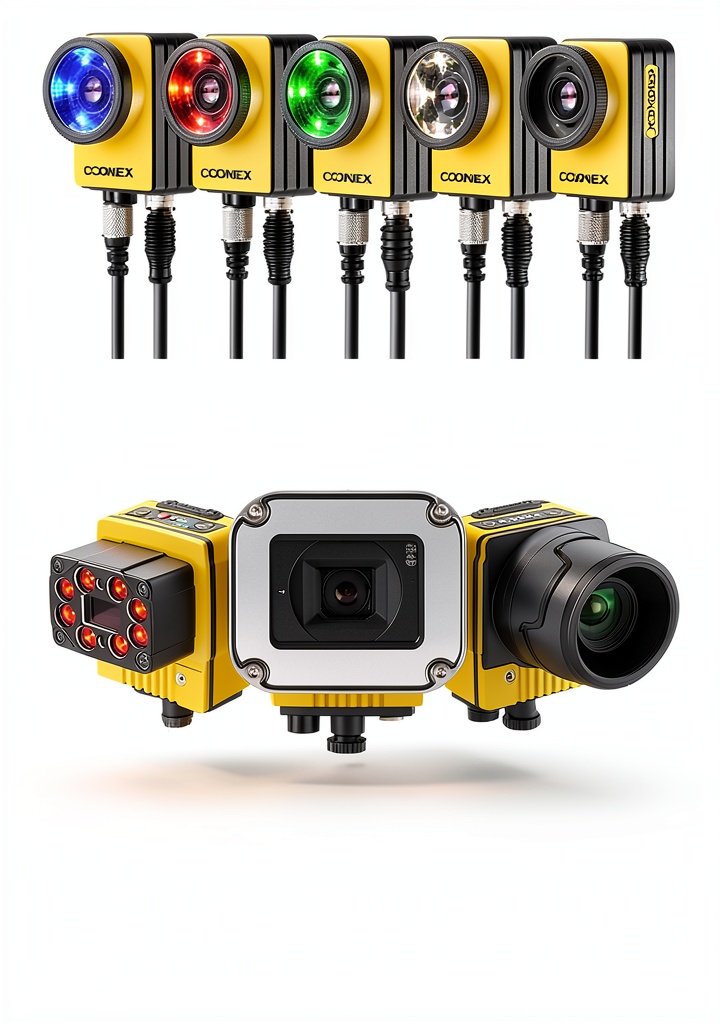

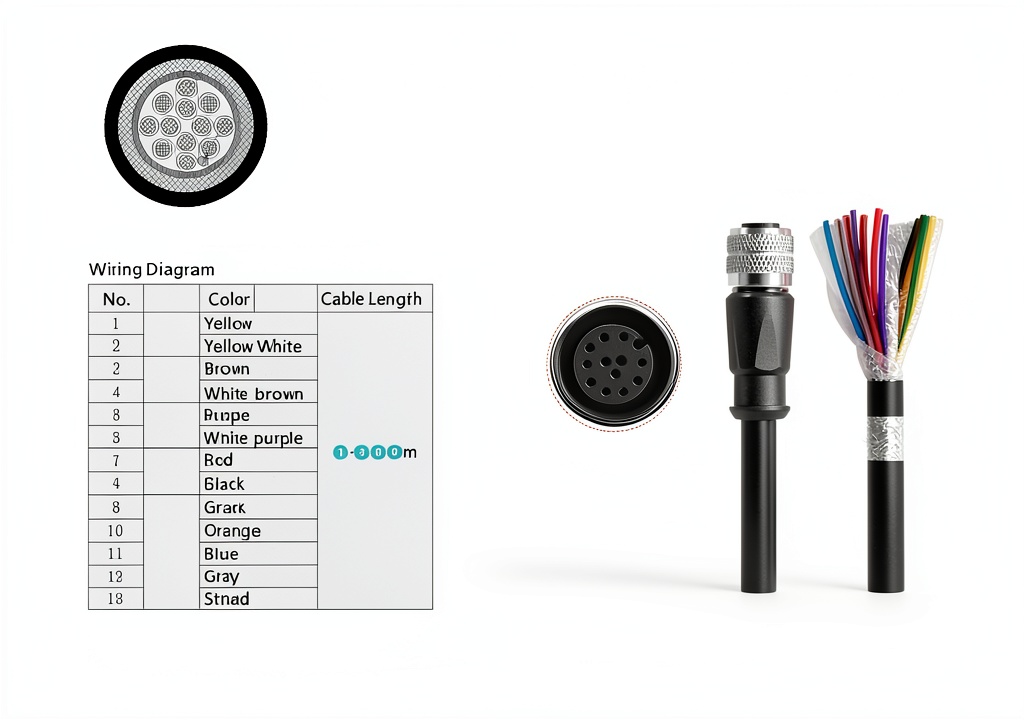

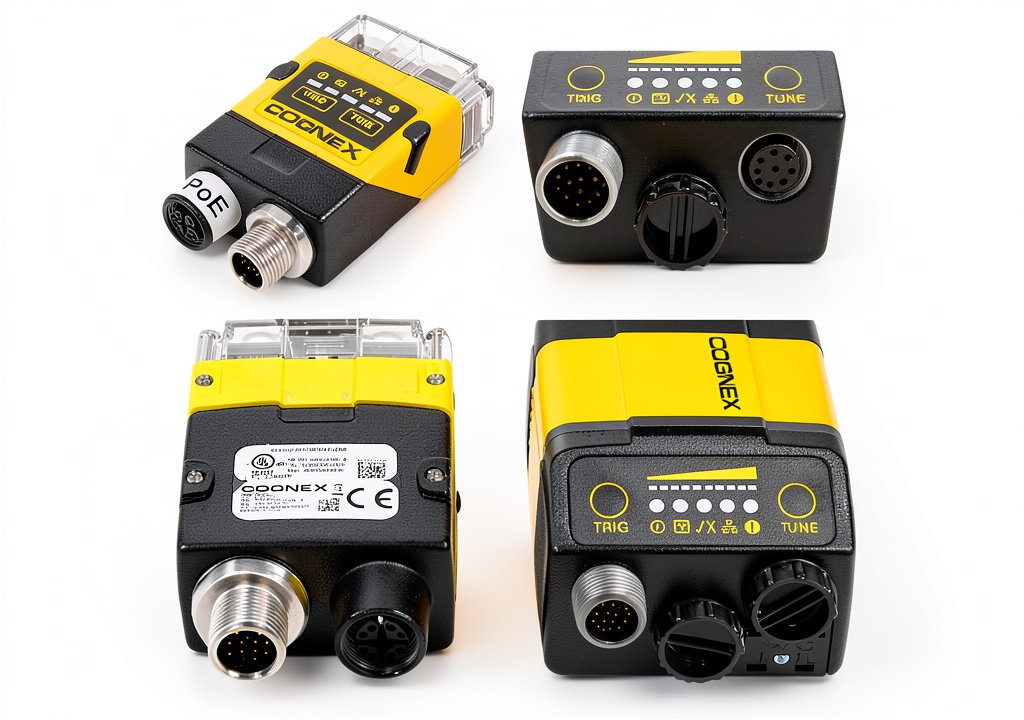

Designed specifically for Cognex In‑Sight series cameras, including the 2000, 7000, 9000, 2800, 3800, and 7000Gen2 models, as well as DataMan readers and Checker 201/202 scanners, this cable serves as a universal solution for a wide range of vision system components. Its 24 V DC rating supports power delivery to sensors, actuators, and encoders, while the 12‑pin configuration accommodates general‑purpose I/O, acquisition triggers, and RS‑232 communication. The cable’s compact 0.79 × 0.79 × 0.79 inch form factor makes it easy to route in confined spaces, and the 1 meter length provides sufficient reach without excess slack that could cause entanglement or signal degradation.

Usage

In industrial automation lines, the cable is typically deployed to connect vision cameras to programmable logic controllers (PLCs) or industrial PCs, enabling real‑time inspection and quality control. Its robust shielding protects the signal integrity against electromagnetic noise generated by nearby motors, drives, and welding equipment, making it suitable for environments such as automotive assembly, electronics manufacturing, and food processing facilities. The cable also excels in robotic applications where flexible movement and repeated bending are required, as the high‑flex design tolerates thousands of flex cycles without compromising performance.

Beyond vision systems, the cable can be used with barcode readers, such as the Omron Microscan series, and with encoder devices from Baumer or Keyence, providing a single, reliable conduit for both power and communication. Installation is straightforward: the M12 A‑coded connector snaps securely into the camera’s socket, while the bare wire flying lead can be stripped and terminated to a custom connector or directly soldered to a control board, offering flexibility for bespoke integration projects. The cable’s oil‑resistant and flame‑retardant properties also make it a safe choice for hazardous locations where compliance with IECEx or ATEX standards may be required.

Why Choose Us

Choosing this Cognex‑approved cable means selecting a product that has been rigorously tested for compatibility with Cognex’s extensive portfolio of vision hardware. Each cable undergoes a comprehensive quality assurance process, including continuity testing, insulation resistance verification, and environmental stress screening, to guarantee that it meets or exceeds OEM specifications. Our manufacturing partners employ precision extrusion and automated winding techniques to ensure consistent braid density and uniform shielding coverage, which translates into reliable performance across the entire product batch.

We stand behind our product with a dedicated technical support team that can assist with installation guidance, troubleshooting, and firmware compatibility questions. In addition, we offer a flexible return policy and a warranty that covers manufacturing defects for up to two years, providing peace of mind for system integrators and end users alike. Our commitment to rapid order fulfillment and inventory availability means that you can keep your production line running without costly delays caused by component shortages.

Key Features

• Durable M12 A‑coded 12‑pin connector ensures a secure, low‑resistance connection.
• Braided shielded design provides excellent EMI protection for reliable data transmission.
• 24 V DC rating supports power delivery to a wide range of vision sensors and actuators.
• High‑flex 23 AWG conductors allow easy routing in tight or moving installations.
• Comprehensive after‑sales support and a two‑year warranty give confidence in long‑term use.

FAQ

What camera models are compatible with this cable?

The cable is compatible with Cognex In‑Sight series cameras such as the 2000, 7000, 9000, 2800, 3800, and 7000Gen2, as well as DataMan readers and Checker 201/202 scanners.

Can the cable be used for RS‑232 communication?

Yes, the 12‑pin configuration includes pins that can be assigned for RS‑232 serial communication, allowing you to integrate legacy equipment alongside modern vision hardware.

Is the cable suitable for hazardous environments?

Its oil‑resistant, flame‑retardant construction meets IECEx and ATEX guidelines, making it appropriate for use in hazardous locations when installed according to safety standards.

How do I terminate the flying lead end?

The bare wire end can be stripped and either soldered directly to a PCB or fitted with a custom connector that matches your system’s wiring requirements.

What is the warranty period for this product?

We provide a two‑year warranty covering any manufacturing defects, backed by our technical support team for installation and troubleshooting assistance.
