M12 5 Pin Male Female Cable 20M – HangTon Connect Actuator Wire

Description

Product Overview

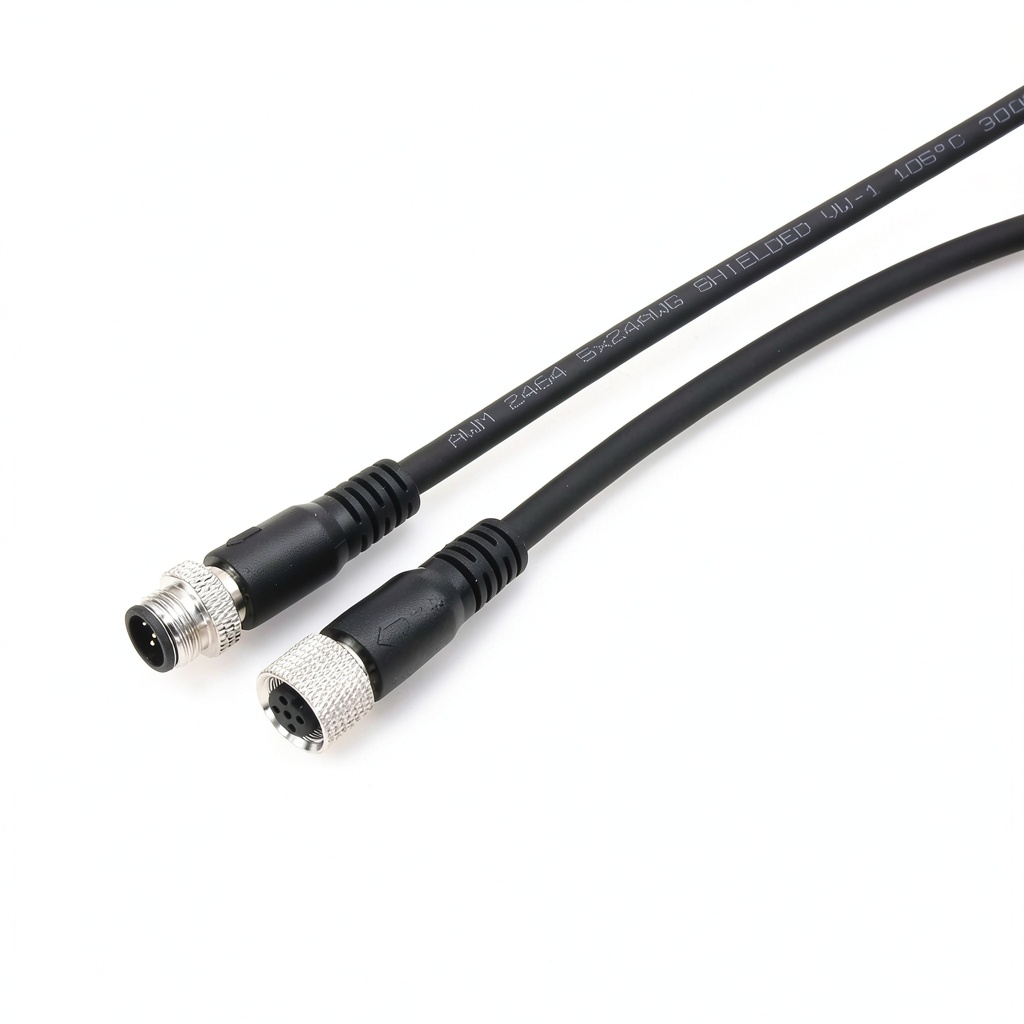

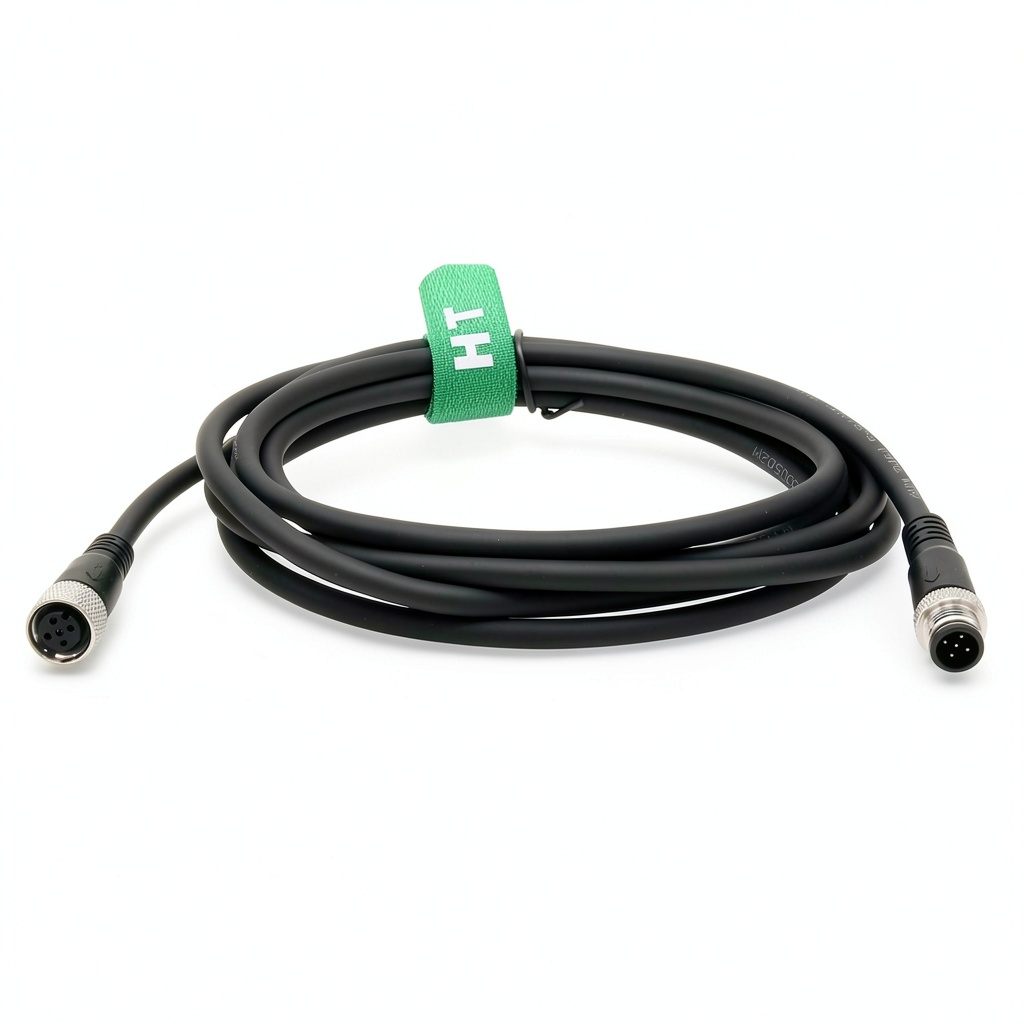

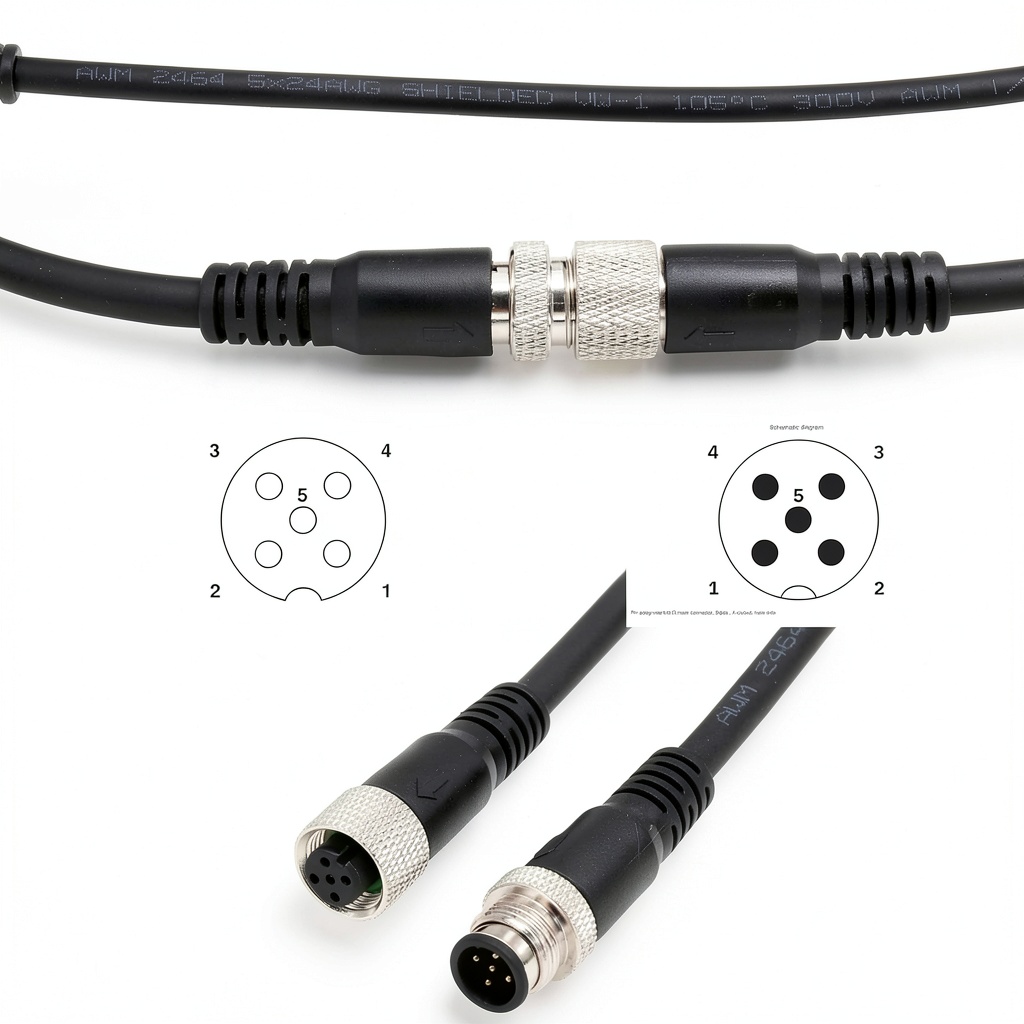

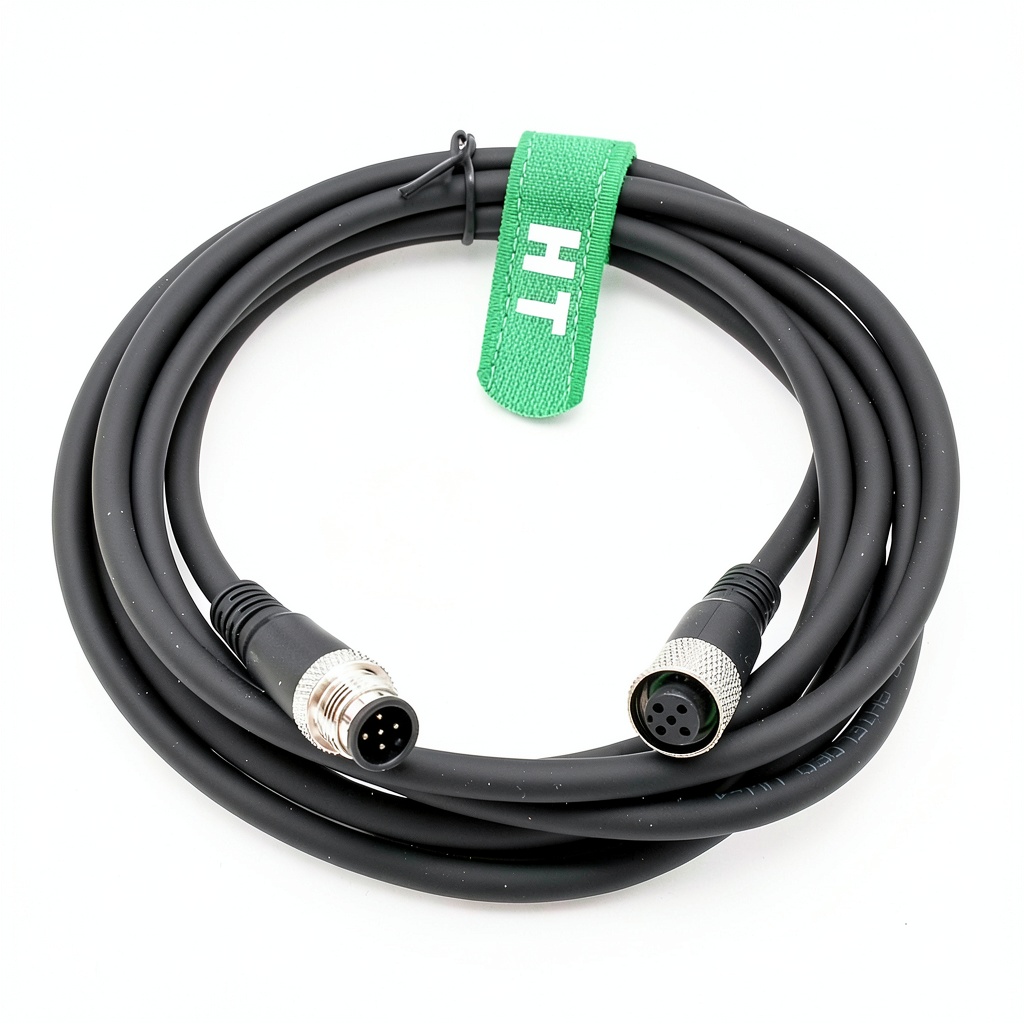

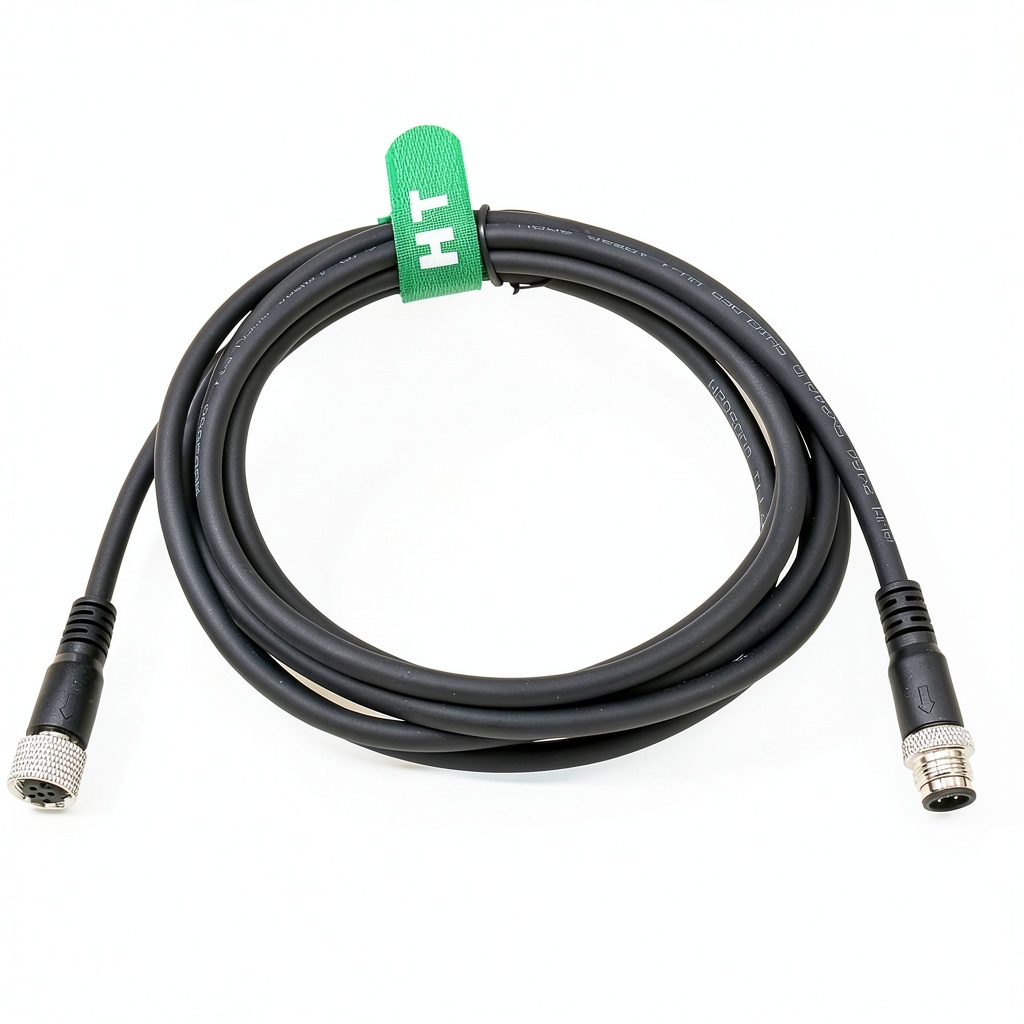

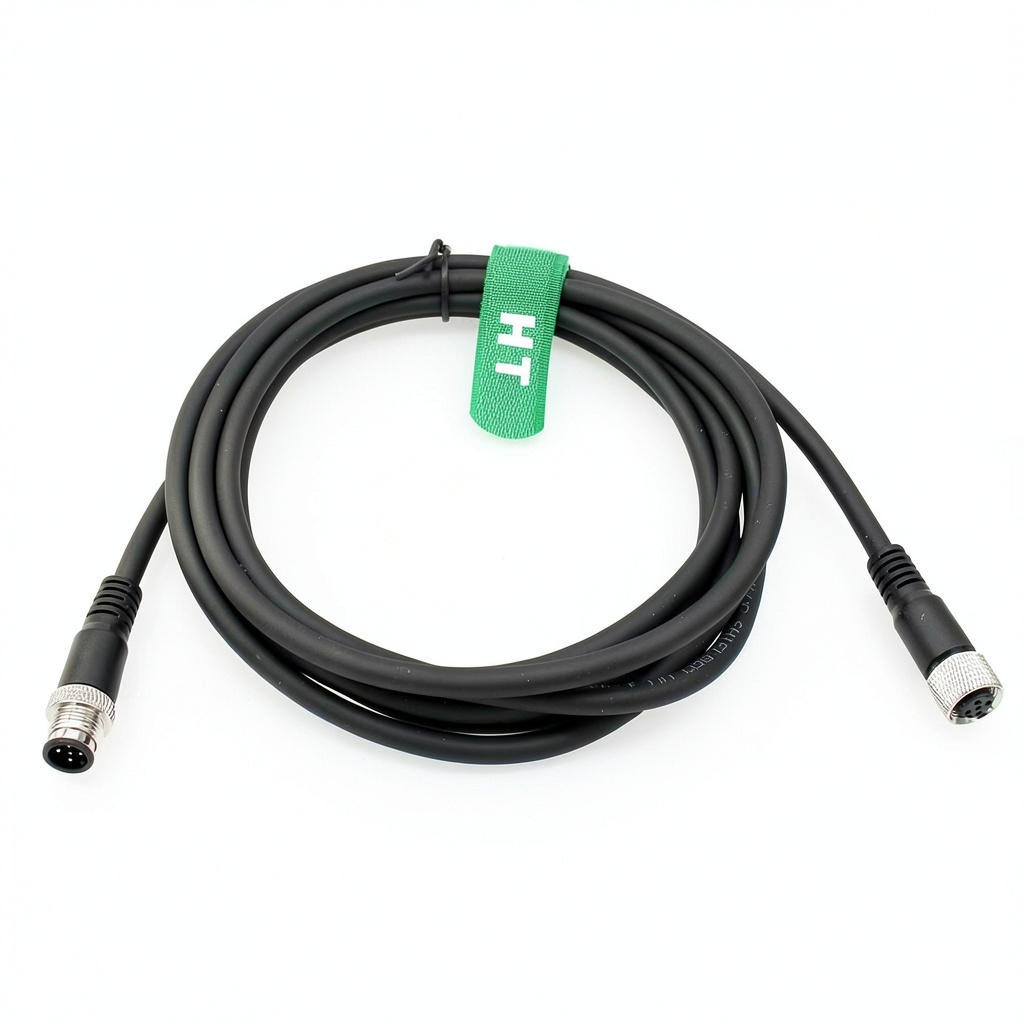

The M12 5‑pin male to female cable is engineered for high‑performance communication in industrial automation. Constructed with a gold‑plated contact set, the connector delivers low‑resistance signal paths that resist corrosion and maintain signal integrity over time. The cable features a five‑conductor layout, each wire sized at 24 AWG, encased in a flexible yet robust PVC jacket that protects against abrasion, chemicals, and temperature extremes. A braided shield surrounds the conductors, providing excellent electromagnetic interference (EMI) suppression, which is essential for reliable data exchange in noisy factory environments. The connector housing incorporates a plastic cover and a metal threaded collar, allowing for a secure, vibration‑resistant fit that meets the stringent requirements of IO‑Link, Profibus, DeviceNet, and other fieldbus standards. With a total length of 20 meters, the cable offers ample reach for complex machine layouts while maintaining consistent performance across the entire run.

Usage

This cable is suited for a wide range of applications where precise, real‑time data transmission is critical. Typical use cases include connecting sensors and actuators in robotic cells, linking programmable logic controllers (PLCs) to distributed I/O modules, and interfacing vision systems with motion controllers. The M12 connector’s compact form factor makes it ideal for tight spaces on production lines, while the 20 m length provides flexibility for routing between equipment racks and control cabinets. Engineers and system integrators will appreciate the cable’s compatibility with standard M12 A‑coded interfaces, enabling seamless integration into existing networks without the need for additional adapters. Whether deployed in automotive assembly stations, food processing lines, or pharmaceutical manufacturing facilities, the cable’s durable construction ensures long‑term reliability even under continuous operation, high vibration, and exposure to harsh environmental conditions.

Why Choose Us

Choosing HangTon Connect means selecting a partner committed to quality and performance. Our M12 cable undergoes rigorous testing for electrical continuity, insulation resistance, and shielding effectiveness, guaranteeing compliance with IEC and ISO standards. The gold‑plated contacts are sourced from reputable manufacturers, delivering superior conductivity and resistance to oxidation. We back our products with a comprehensive warranty and responsive technical support, ensuring that any installation questions or performance concerns are addressed promptly. In addition, our manufacturing processes incorporate environmentally responsible practices, using recyclable PVC materials and minimizing waste. By delivering a product that combines durability, precision engineering, and exceptional customer service, HangTon Connect helps you reduce downtime, lower maintenance costs, and achieve higher overall equipment effectiveness (OEE) in your automation projects.

Key Features

• Gold‑plated contacts provide low‑resistance, corrosion‑resistant connections for reliable signal transfer.
• Five‑conductor 24 AWG design supports power and data transmission in a single, compact cable.
• Braided shield and PVC jacket protect against EMI, abrasion, chemicals, and temperature fluctuations.
• Metal threaded collar with plastic cover ensures a secure, vibration‑proof fit in demanding industrial settings.
• Comprehensive technical support and warranty give confidence for long‑term deployment and maintenance.

FAQ

What is the maximum current rating for this M12 cable?

The cable is rated for up to 2 A per conductor, which is suitable for most sensor and actuator applications in industrial automation.

Can this cable be used with IO‑Link devices?

Yes, the M12 A‑coded connector and shielded construction are fully compatible with IO‑Link specifications, ensuring reliable communication.

Is the PVC jacket flame‑retardant?

The jacket meets UL94 V‑0 flame‑retardant standards, providing added safety in environments where fire resistance is required.

How does the shielding improve performance?

The braided shield reduces electromagnetic interference from nearby equipment, maintaining signal integrity and reducing error rates in noisy industrial settings.

What warranty does HangTon Connect offer?

We provide a 12‑month limited warranty covering manufacturing defects, along with access to our technical support team for installation assistance and troubleshooting.
