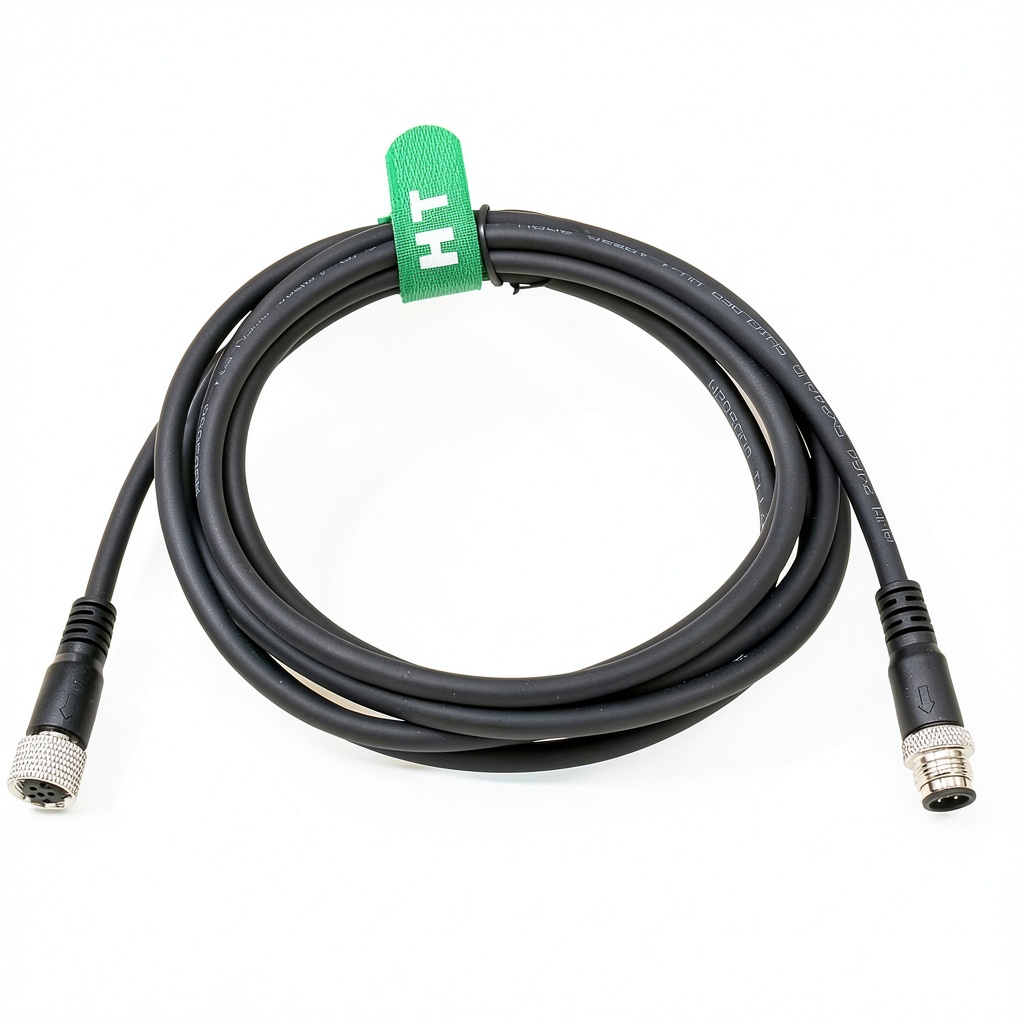

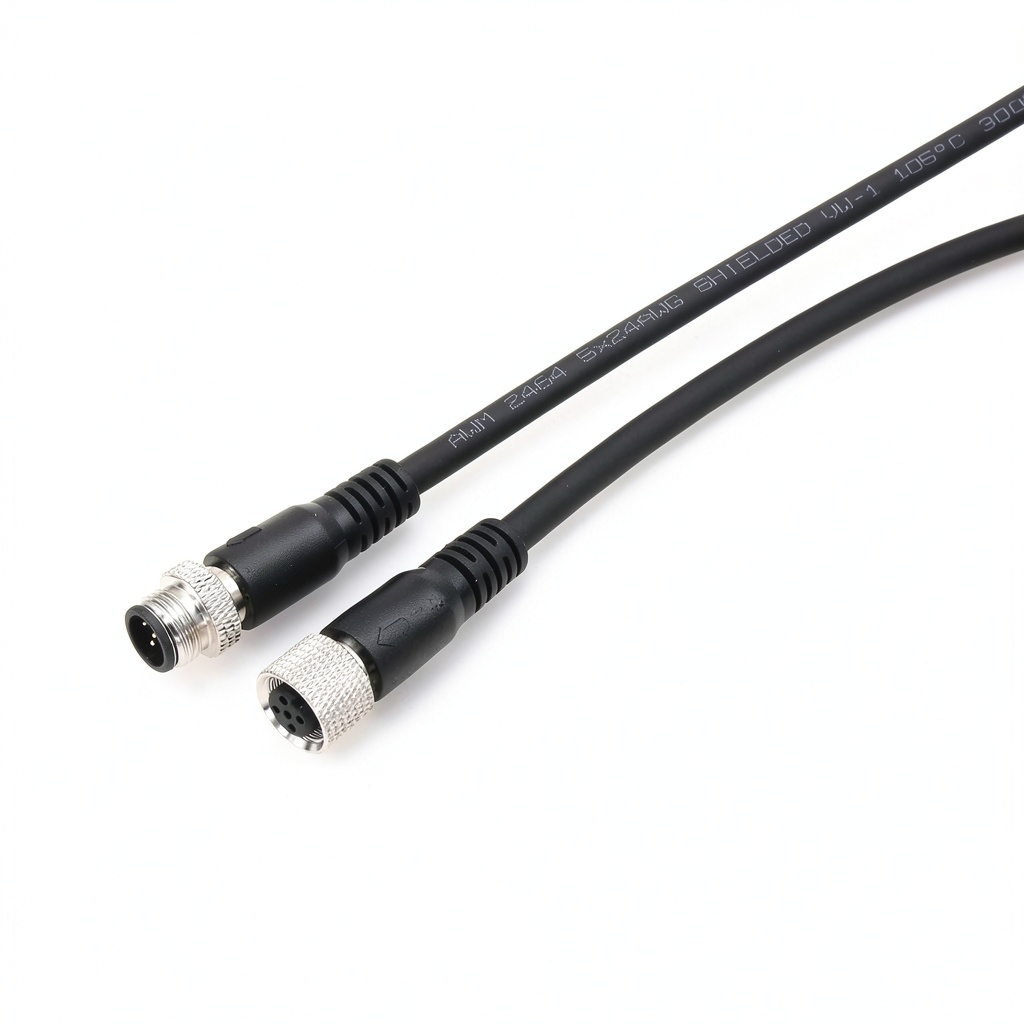

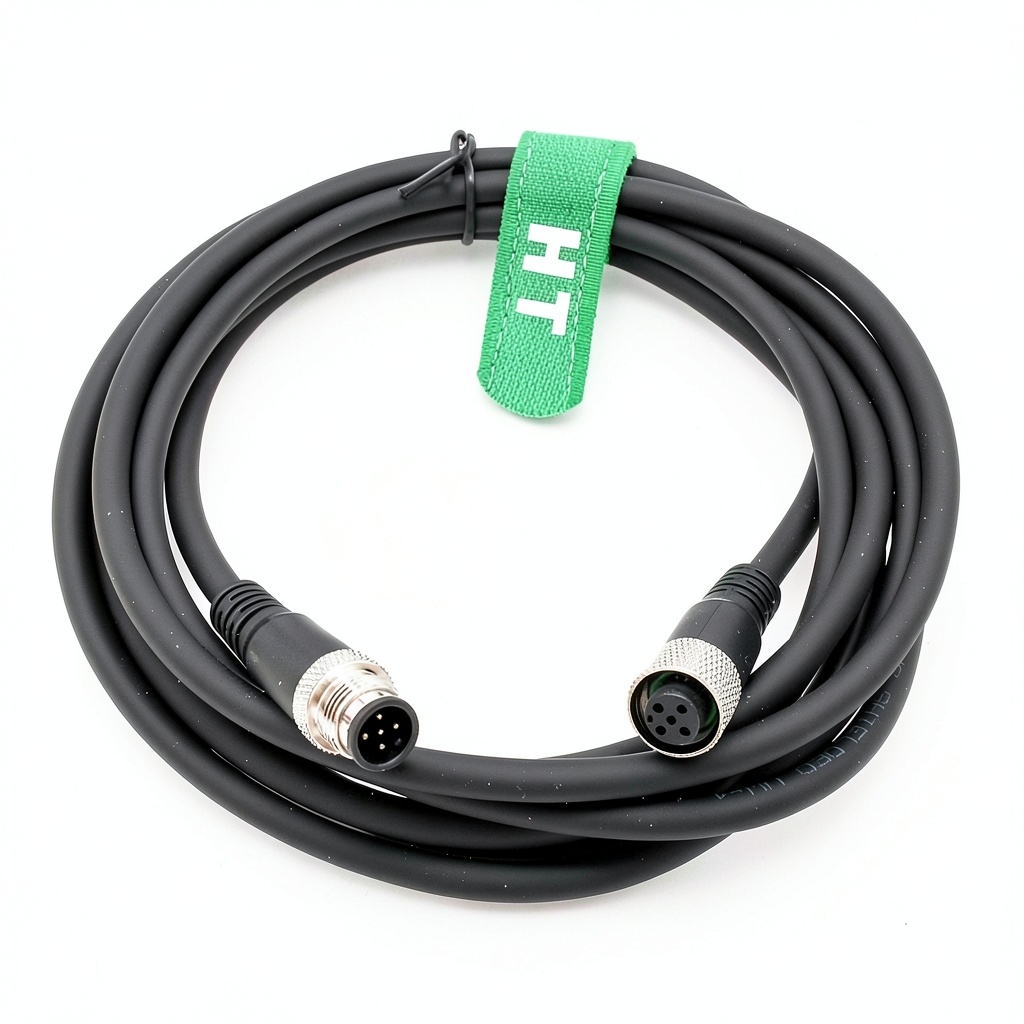

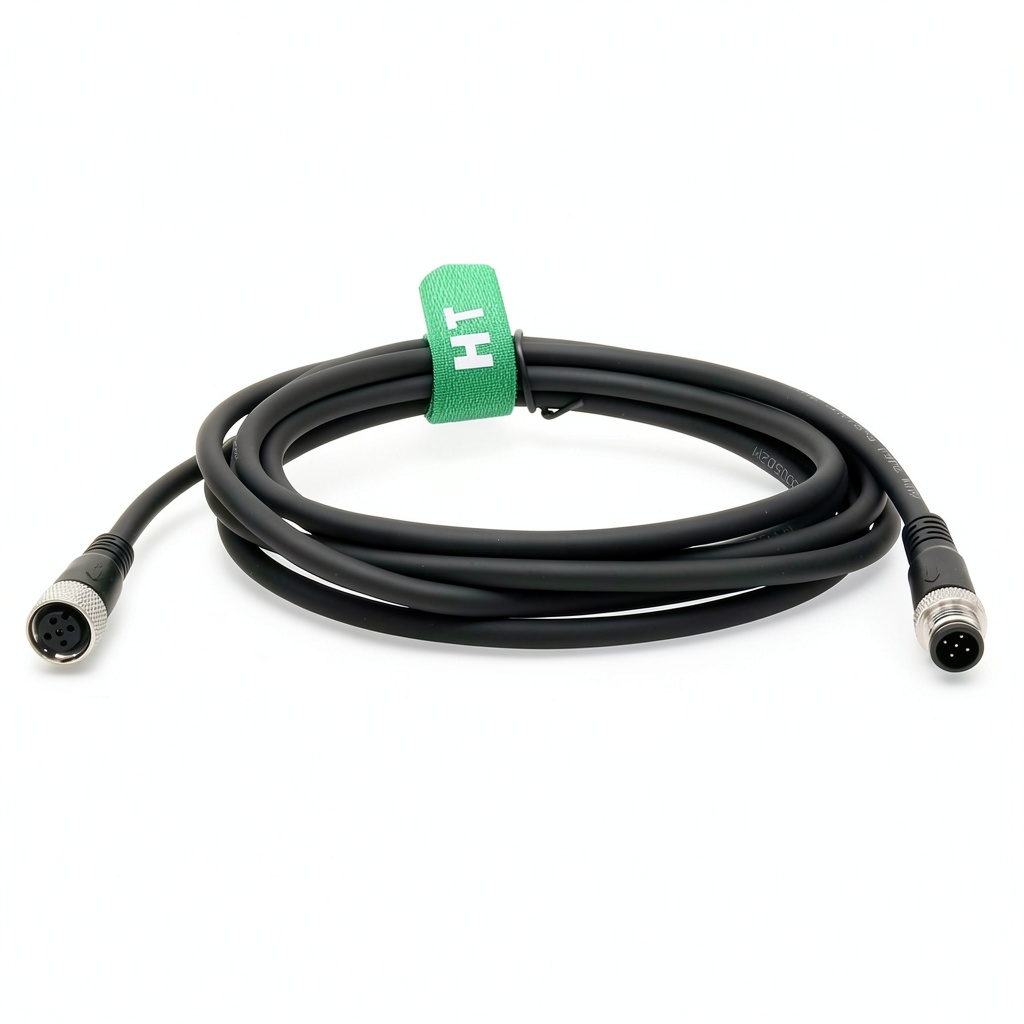

M12 5 Pin Male Female Shielded Cable for Actuator Sensor HangTon 5M

Description

Product Overview

The M12 5 Pin Male Female Actuator Sensor Signal Shielded Cable is engineered for demanding industrial applications where signal fidelity and durability are paramount. Constructed with a high‑quality PVC jacket, the cable houses five 24 AWG conductors that are individually insulated to prevent cross‑talk and maintain clean data transmission. The outer braid of copper shield provides excellent protection against electromagnetic interference (EMI), ensuring that sensitive sensor and actuator signals remain stable even in electrically noisy environments.

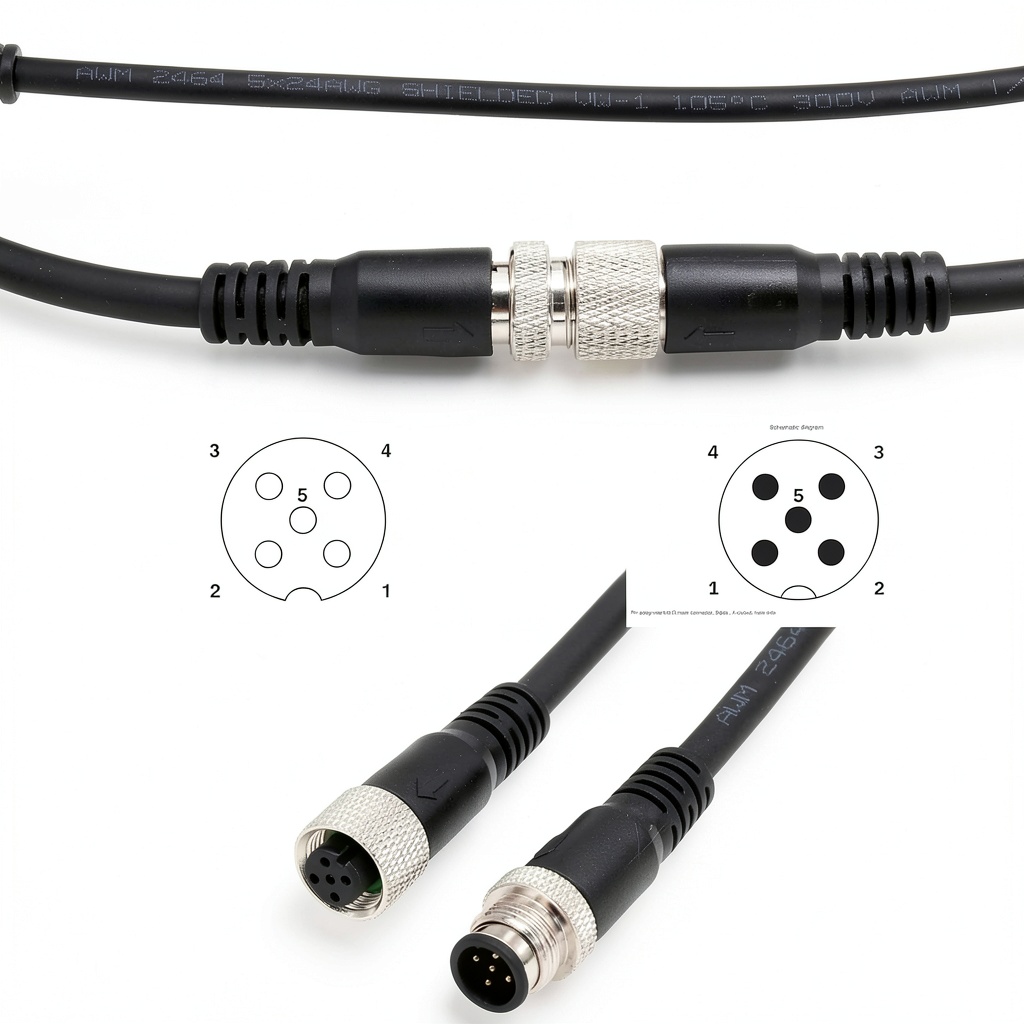

Each connector features a gold‑plated contact surface, delivering low contact resistance and long‑term reliability. The M12 A‑coded aviation‑style connector includes a robust metal threaded collar and a protective plastic cover, guaranteeing a secure, vibration‑resistant fit that meets the rigorous standards of DeviceNet, CANopen, IO Link, and Profibus networks. The 5‑meter length offers flexibility for a wide range of machine layouts while keeping cable management simple.

Designed for compatibility with a broad spectrum of industrial devices, this cable supports both male‑to‑female and female‑to‑male configurations, making it a versatile choice for system integrators and maintenance technicians. The cable’s compliance with IEC standards for shielding and conductor sizing ensures it can be deployed in hazardous locations without compromising safety.

Key specifications include a 2 × 2 × 2 inches package size, a weight of 3.53 oz, and a product model number of 1330535646367. The cable is manufactured by HangTon Connect, a trusted brand known for delivering high‑performance connectivity solutions for automation and control systems.

Usage

In modern manufacturing plants, the M12 shielded cable is commonly used to connect proximity sensors, limit switches, and rotary encoders to programmable logic controllers (PLCs). Its robust construction makes it ideal for mounting on robotic arms, conveyor belts, and CNC machines where constant motion and vibration are present. The cable’s EMI shielding is especially valuable in environments with high‑power drives, variable frequency drives (VFDs), and heavy machinery that generate substantial electrical noise.

For machine vision applications, the cable provides a reliable link between cameras and illumination units, ensuring that high‑resolution image data is transmitted without distortion. In process automation, the cable can be employed to interconnect field devices in distributed control systems (DCS) and supervisory control and data acquisition (SCADA) networks, supporting real‑time monitoring and control of critical parameters.

Because the cable meets the stringent requirements of industrial networking protocols, it is also suitable for use in harsh outdoor installations, such as oil and gas refineries, chemical plants, and mining operations. The PVC jacket resists oil, chemicals, and temperature extremes, while the gold‑plated contacts maintain performance over long service intervals.

Why Choose Us

HangTon Connect combines decades of expertise in industrial connectivity with a commitment to quality assurance. Every cable undergoes rigorous testing for continuity, insulation resistance, and shielding effectiveness before it leaves the factory, guaranteeing that you receive a product that performs as advertised.

Our focus on material selection means that the conductors are made from high‑purity copper, and the shielding braid is crafted from tinned copper to prevent oxidation. The gold‑plated contacts are engineered to resist corrosion and maintain low resistance even after repeated mating cycles, reducing the risk of downtime caused by connector wear.

Customer support is a cornerstone of our service model. We provide detailed technical documentation, wiring diagrams, and a responsive help desk that can assist with installation, troubleshooting, and compatibility questions. With HangTon Connect, you gain a partner that stands behind its products with comprehensive warranties and after‑sales assistance.

Key Features

• Five‑conductor 24 AWG design delivers reliable power and data transmission for demanding industrial applications.
• Gold‑plated M12 A‑coded connectors ensure low contact resistance and long‑term durability.
• Robust copper braid shield provides superior EMI protection, maintaining signal integrity in noisy environments.
• PVC jacket resists oil, chemicals, and temperature extremes, suitable for harsh outdoor and indoor installations.
• HangTon Connect offers dedicated technical support and a comprehensive warranty for peace of mind.

FAQ

What is the maximum current rating for this cable?

The cable is rated for up to 2 amps per conductor, which is sufficient for most sensor and actuator signal applications in industrial automation.

Can this cable be used with Profibus networks?

Yes, the cable meets the shielding and impedance requirements for Profibus, making it a reliable choice for Profibus DP and PA configurations.

Is the cable suitable for outdoor use?

Absolutely. The PVC jacket is UV‑resistant and can withstand temperatures from -20 °C to +80 °C, allowing deployment in outdoor or harsh indoor environments.

How many mating cycles can the connector endure?

The M12 A‑coded connector is designed for at least 500 mating cycles without degradation of contact performance.

Do you provide custom lengths?

HangTon Connect offers custom cable lengths upon request. Contact our sales team for a quote and lead time for non‑standard lengths.
