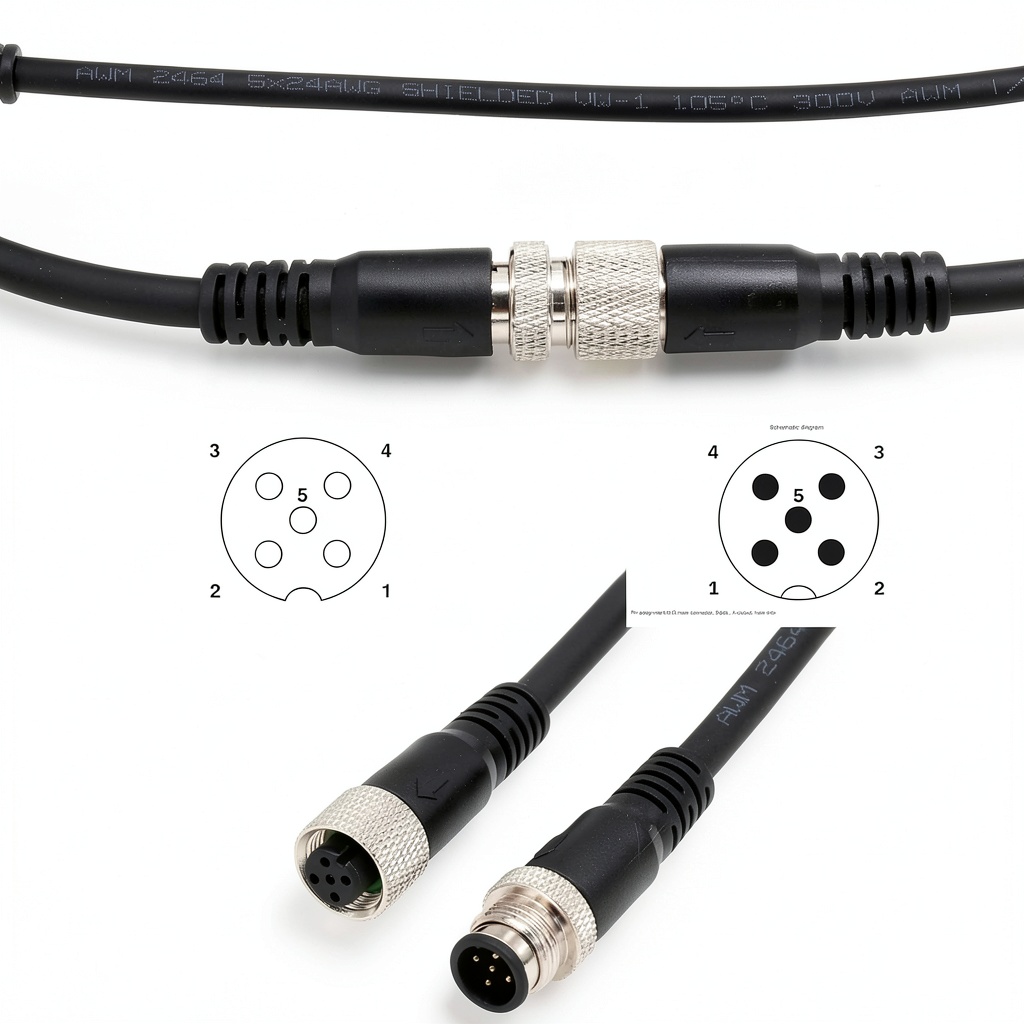

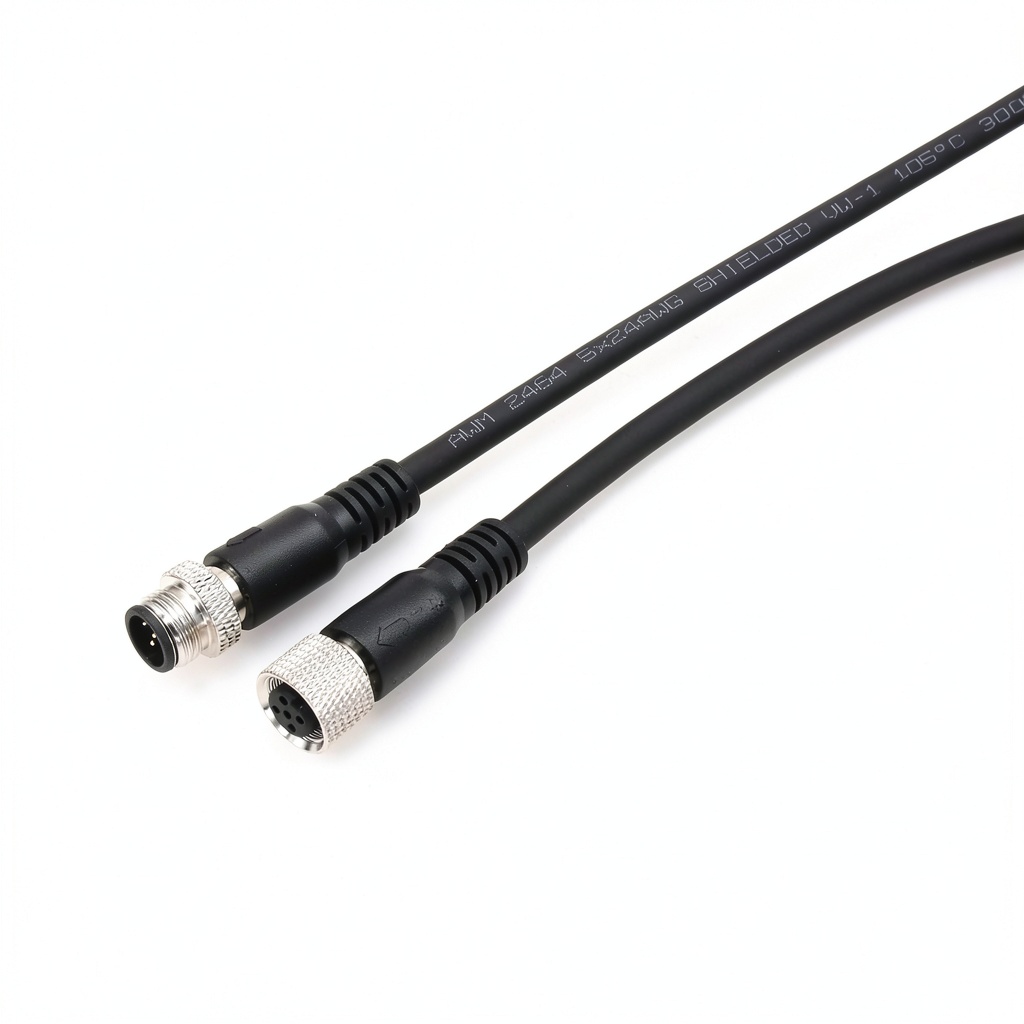

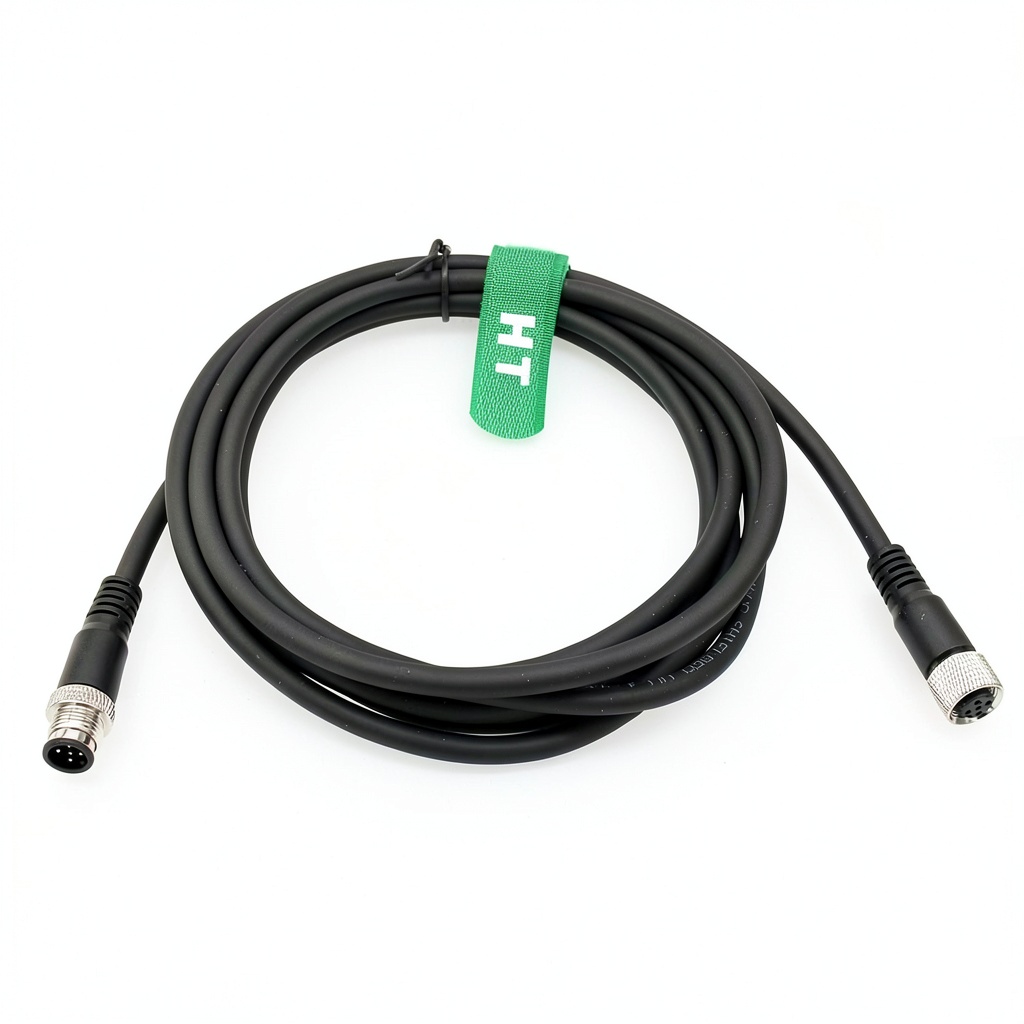

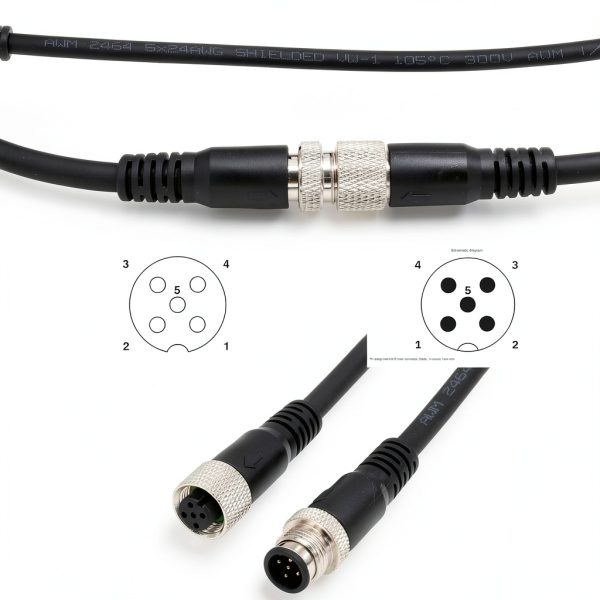

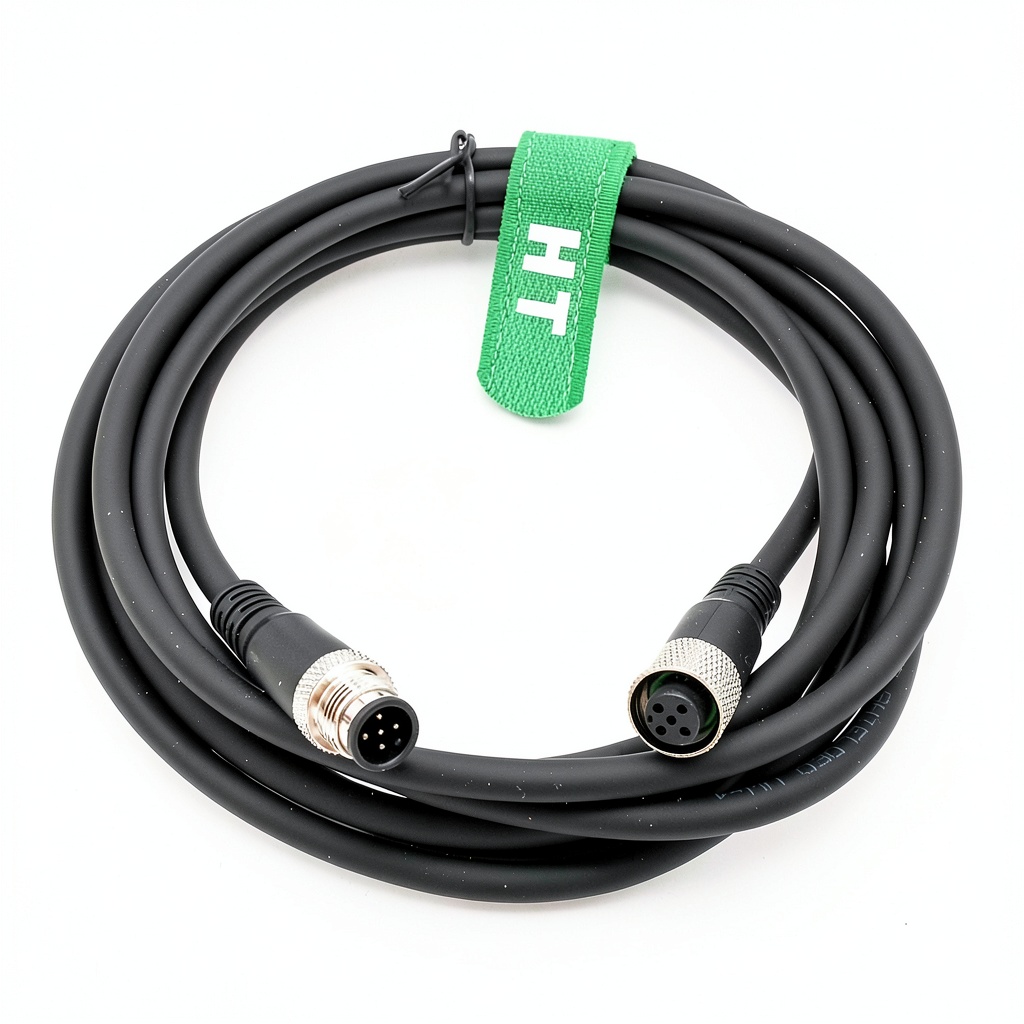

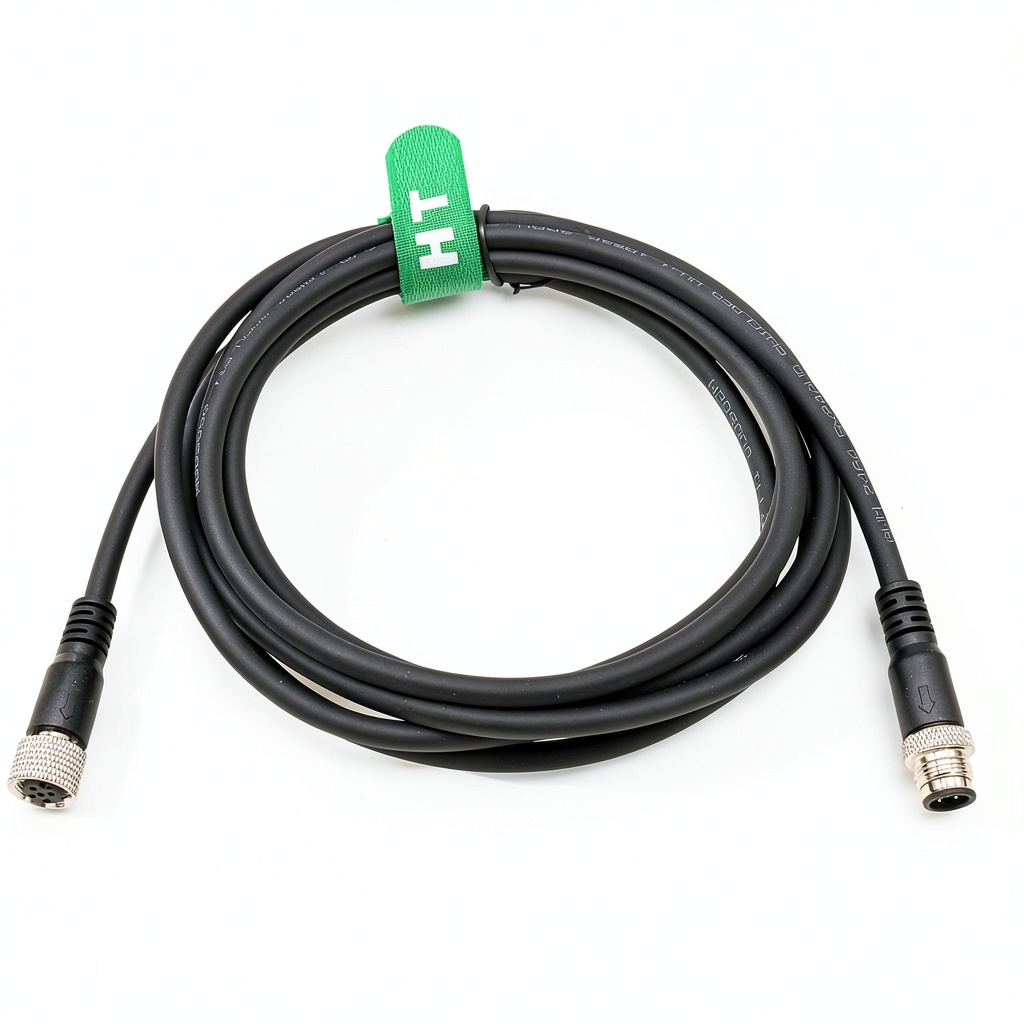

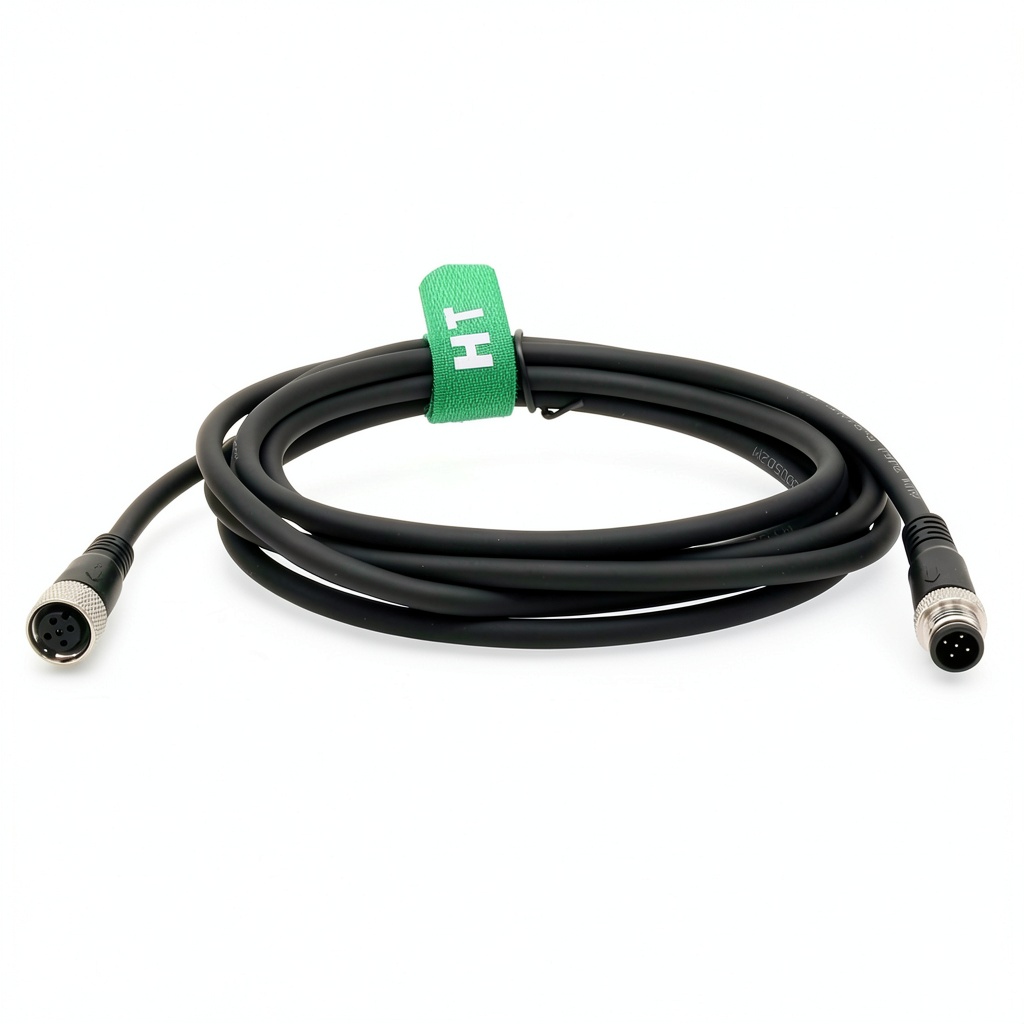

M12 A Coded 5 Pin Male to Female Actuator Cable 2m HangTon Connect

Description

Product Overview

The M12 A Coded 5‑pin male‑to‑female actuator sensor signal cable is engineered for high‑reliability industrial communication. Constructed with 24AWG 5‑conductor copper strands, the cable provides low‑resistance signal transmission while maintaining flexibility for routing in tight spaces. A durable PVC jacket shields the conductors from abrasion, chemicals, and temperature extremes, and a braided copper shield further suppresses electromagnetic interference (EMI), ensuring clean data across DeviceNet, CANopen, IO‑Link, and Profibus networks. The 2 meter length balances reach and manageability, making it suitable for panel‑mount installations, robotic arms, and distributed control systems. All connectors conform to the M12 A coded standard, guaranteeing secure mating and consistent pinout across devices. The product dimensions of 1.97 × 1.97 × 1.18 inches and a weight of 3.53 oz provide a compact footprint for space‑constrained applications.

Usage

This cable excels in environments where precise sensor feedback and actuator control are critical. Typical use cases include factory automation lines, CNC machines, and material handling equipment where real‑time data exchange between sensors, drives, and controllers is required. The robust PVC jacket resists oil, coolant, and dust, allowing deployment in harsh manufacturing floors, automotive assembly bays, and food‑processing plants that demand strict hygiene standards. Its 5‑pin configuration supports a variety of protocols, enabling seamless integration with programmable logic controllers (PLCs), motion controllers, and distributed I/O modules. The cable’s flexibility facilitates routing through cable trays, conduit, and protective sleeves, while the M12 A coded connectors provide quick, tool‑free termination, reducing downtime during maintenance or system upgrades.

Why Choose Us

Choosing HangTon Connect means selecting a partner committed to quality, reliability, and customer satisfaction. Our M12 A Coded cable undergoes rigorous testing for continuity, insulation resistance, and shielding effectiveness, meeting or exceeding industry standards such as IEC 61076‑2‑101. The manufacturing process incorporates precision‑molded connectors and automated wire‑stranding to guarantee consistent performance across every unit. We back our product with a comprehensive warranty and responsive technical support, ensuring that any installation questions or performance concerns are addressed promptly. Additionally, our supply chain prioritizes rapid fulfillment, so you receive the exact length and configuration needed for your project without unnecessary lead times. By investing in our cable, you reduce the risk of signal degradation, unexpected downtime, and costly re‑engineering, ultimately protecting your bottom line.

Key Features

• High‑quality 24AWG 5‑conductor copper provides low‑loss signal transmission for precise control.
• Durable PVC jacket resists oil, chemicals, and temperature extremes, extending service life.
• Braided copper shield minimizes EMI, ensuring reliable data across noisy industrial environments.
• Standard M12 A coded 5‑pin connectors guarantee secure mating and easy tool‑free installation.
• Comprehensive warranty and dedicated technical support give confidence and reduce total cost of ownership.

FAQ

What communication protocols does this cable support?

The cable is compatible with DeviceNet, CANopen, IO‑Link, and Profibus, making it suitable for a wide range of industrial automation networks that use the M12 A coded connector standard.

Is the cable suitable for outdoor or harsh environments?

Yes. The PVC jacket offers resistance to oil, chemicals, moisture, and temperature fluctuations, while the braided shield protects against electromagnetic interference, allowing reliable operation in demanding indoor and outdoor settings.

Can I use this cable for high‑speed data transmission?

While the cable is optimized for sensor and actuator signal levels typical of DeviceNet and CANopen, its 24AWG conductors and robust shielding also support moderate‑speed data exchange required by most industrial fieldbus applications.

What is the warranty coverage for this product?

HangTon Connect provides a one‑year limited warranty covering manufacturing defects. Our support team is available to assist with installation, troubleshooting, and any performance concerns throughout the warranty period.

How do I terminate the connectors safely?

The M12 A coded connectors feature a tool‑free latch mechanism. Align the pins, push the male connector into the female housing until it clicks, and verify the secure lock. Follow the wiring diagram in the product manual for correct pin assignments.
